Partial Discharge Monitoring
Insulation degradation in transformer bushings and windings is influenced by various electrical, thermal, mechanical, and environmental stress factors accumulated over years of operation.
Partial Discharge (PD) activity serves as a reliable indicator of insulation condition, as it often signals early-stage insulation defects that could eventually lead to system failure.
Petrotec, in partnership with Omicron, provides advanced and user-friendly on-line temporary PD monitoring solutions for power transformers. These systems allow trending and assessment of PD activity over time, enabling early detection of insulation issues and supporting condition-based maintenance strategies for enhanced reliability and asset longevity.
Petrotec is the authorized partner for Omicron products in Qatar
Key Benefits
Key Products

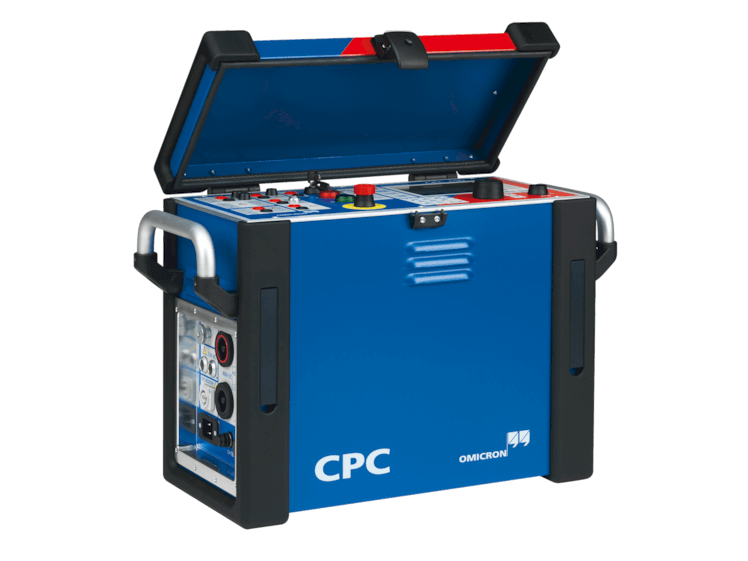

CPC 100
- Up to 800 A or 2000 V with up to 5 kVA over a frequency range of 15 Hz – 400 Hz or 400 A DC
- Excellent interference suppression facilitates measurement of small signals
- Easy to transport (just 29 kg) – ideal for on-site testing
- Testing templates, automatically generated testing procedures and test reports
- Up to 2000 A or 12 kV/ 15kV through use of current or voltage amplifiers
UHF 800
- Highly sensitive ultra-high frequency (UHF) PD measurements in the range from 100 to 2000 MHz.
- Spectrum Evaluation feature and adjustable measurement filters for optimal signal-to-noise ratio in noisy environments.
- Robust and flexible for PD measurements in laboratories, testing bays and in the field.
- Supports CIGRE “Application guide for sensitivity verification” (Brochure 654)
- Single-channel or synchronous multi-channel off-line and on-line UHF PD measurements on gas-insulated switchgear (GIS), oil-filled transformers and HV cable terminations.
- Configurable user interface for individualized PD testing and customized reporting

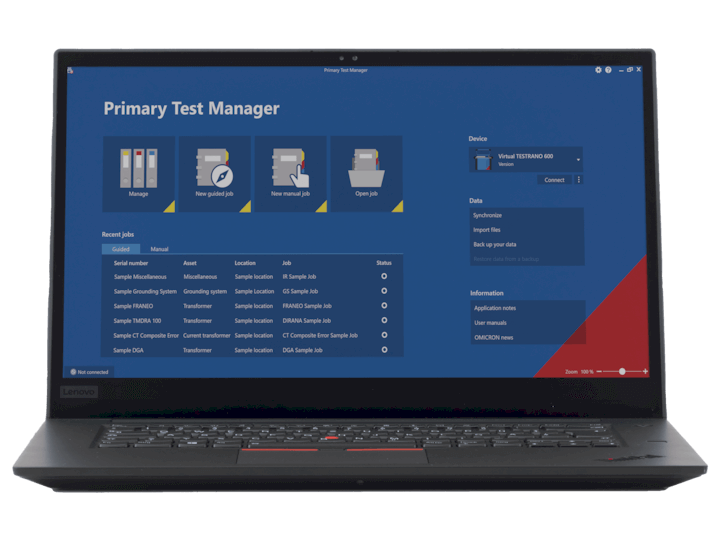

Primary Test Manager (PTM)
- Asset-specific test plan generation
- Guided workflow for test set-up and execution without expert knowledge
- Automatic assessment according to industry standards
- Comprehensive and customized reports
- Import and export interfaces for easy data exchange
- Integrated asset data management in a local and client/server database.

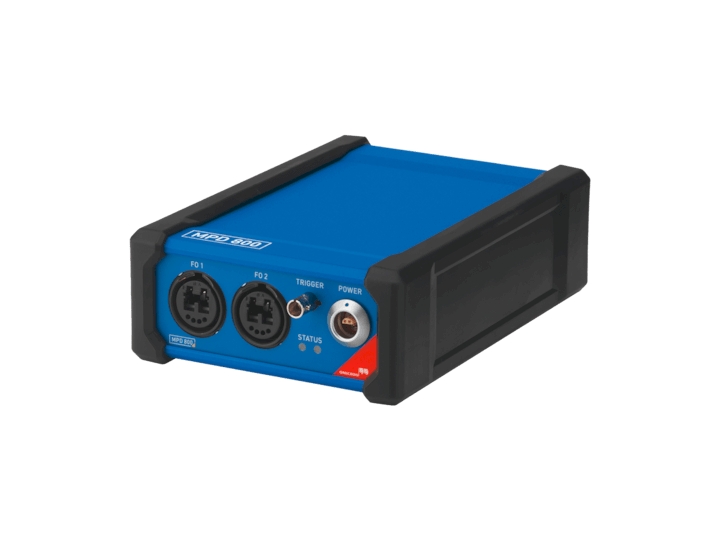

MPD 800
- One PD testing system for all types of electrical equipment and components
- Robust and flexible for use in laboratories, testing bays and in the field
- Synchronous, multi-channel PD measurement and gating capabilities
- Selectable filters for IEC and IEEE standard-compliant PD testing
- Broad PD frequency range for optimal signal-to-noise ratio in noisy environments
- Advanced noise separation and PD source separation techniques for reliable analysis
- Multi-language PD testing software with configurable user interface for individualized PD testing and reporting
PARADIMO 100
- Smart edge computing device for continuous monitoring of PD activity.
- Automatic defect detection and classification to enable risk assessment.
- PD monitoring in wide- and medium-band ranges for accurate signal detection.
- Supports CIGRE “Application guide for sensitivity verification” (Brochure 654)
- Highly scalable system to monitor critical bays or complete substations.
- Remote data access to each installed device via a Web interface.
- Easy connections to AC power, PD sensors, and existing IT infrastructure.

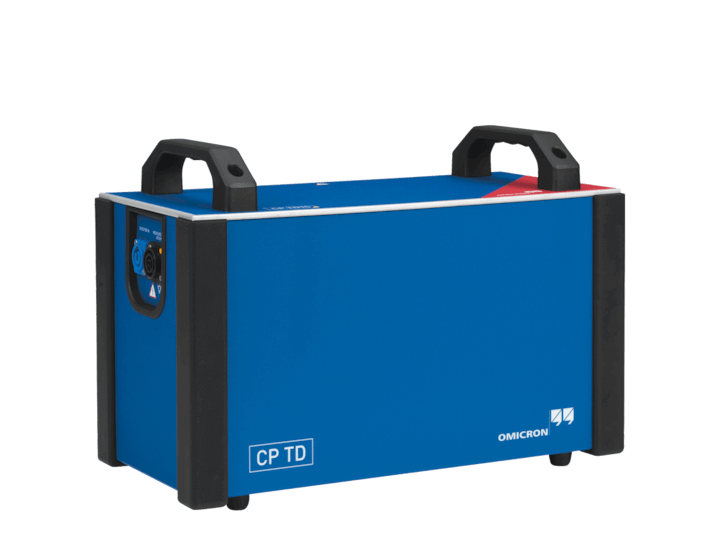

CP TD12/15
- Compact and rugged all-in-one test set
- Wider frequency range for more sensitivity (15 Hz – 400 Hz)
- Testing at variable frequencies for better condition diagnosis
- Excellent suppression of mains frequency interference fields
- High-voltage source for partial discharge measurements up to 15 kV
- Portable component and simple to transport using a trolley.

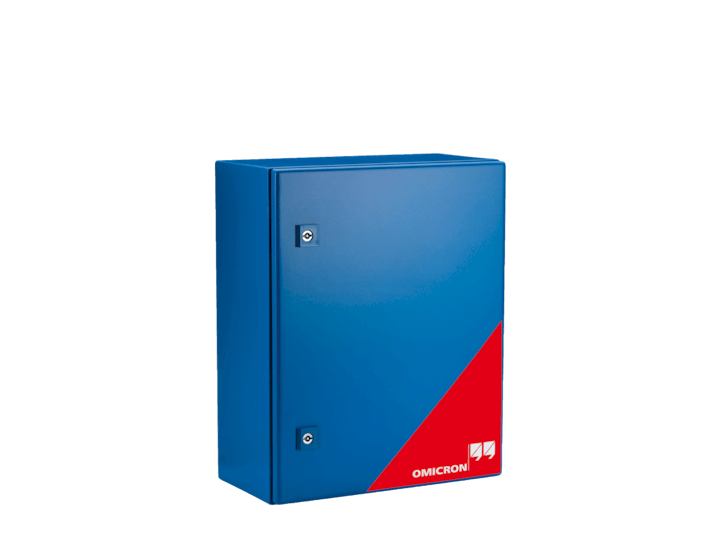

MONCABLO
- Customizable to match cable system architecture
- PD monitoring and diagnosis features available in one system
- Synchronous PD data acquisition at all cable accessories
- Advanced PD localization along the entire cable length
- Cutting-edge web-based management, data access and visualization
- Alarm notification via Email
- Seamless integration with third-party monitoring devices and SCADA systems
MONCABLO
- Customizable to match cable system architecture
- PD monitoring and diagnosis features available in one system
- Synchronous PD data acquisition at all cable accessories
- Advanced PD localization along the entire cable length
- Cutting-edge web-based management, data access and visualization
- Alarm notification via Email
- Seamless integration with third-party monitoring devices and SCADA systems
MONGEMO
- Customized system approach to match specific monitoring requirements
- Synchronous, four-channel PD data acquisition for complete PD assessment
- Advanced noise suppression and fully automated PD cluster separation for convenient evaluation
- Recording of raw PD data at selected intervals for in-depth post analysis
- Seamless integration with third-party monitoring devices and SCADA systems.

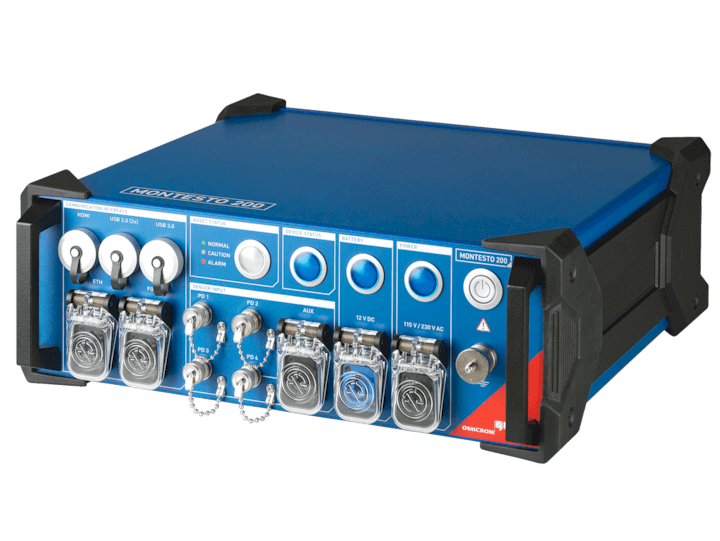

MONTESTO 200
- One solution for temporary PD monitoring for various MV and HV electrical assets
- Compact and lightweight for easy transport
- Designed for indoor and outdoor use
- Built-in computer for continuous, long-term data collection and archival
- Web-based interface for convenient remote setup and data access
- Automated software features for fast and easy data analysis and reporting.

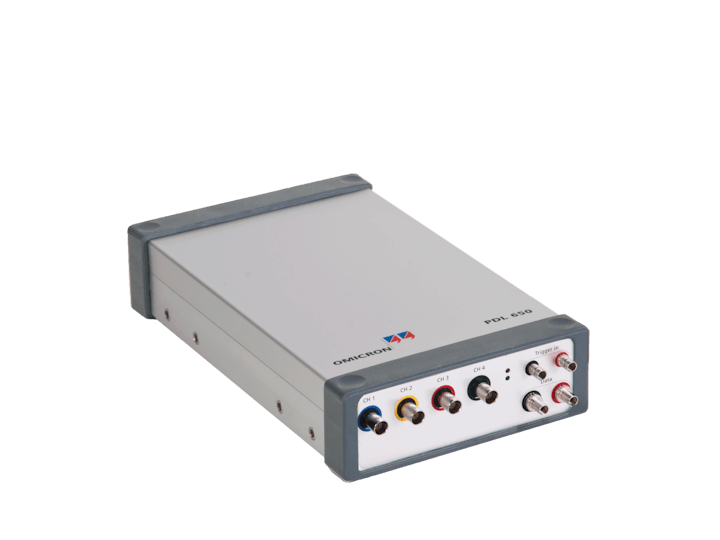

PDL 650
- Efficient because repairs and spare parts are predictable when failure location is known
- Easy creation of reports and records
- Safe due to galvanic separation of operator from high-voltage
- Convenient and handy through light weight, small size and battery operation

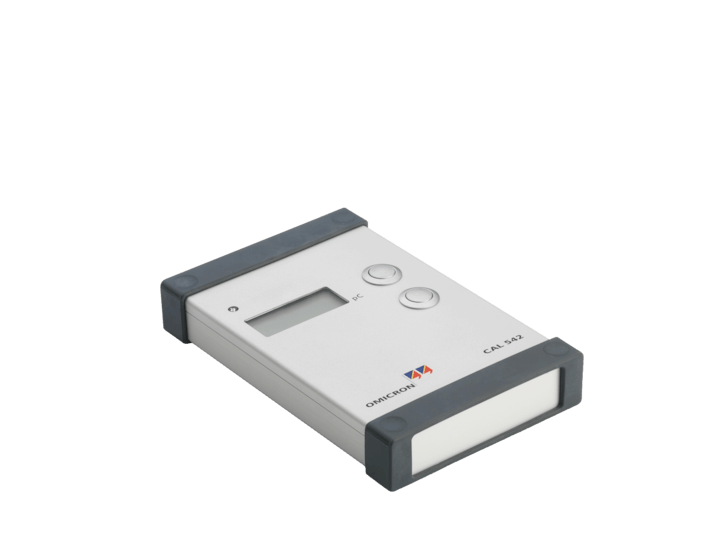

CAL 542
- Lightweight and easy to use
- Intuitive setup of amplitudes
- IEC 60270 standard compliant
- Independent power supply with built-in battery

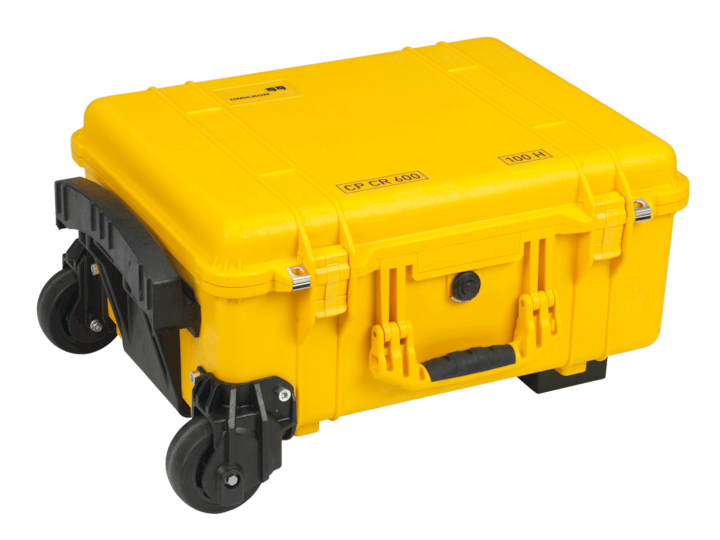

CP CR600
- Maximum test voltage of 15 kV
- Easy to transport due to its modular and lightweight concept (48 kg / 106 lbs)
- Convenient and flexible test setup, ideal for test objects with limited access
- Low noise level, ideal for partial discharge measurements
- Several units can be connected in parallel

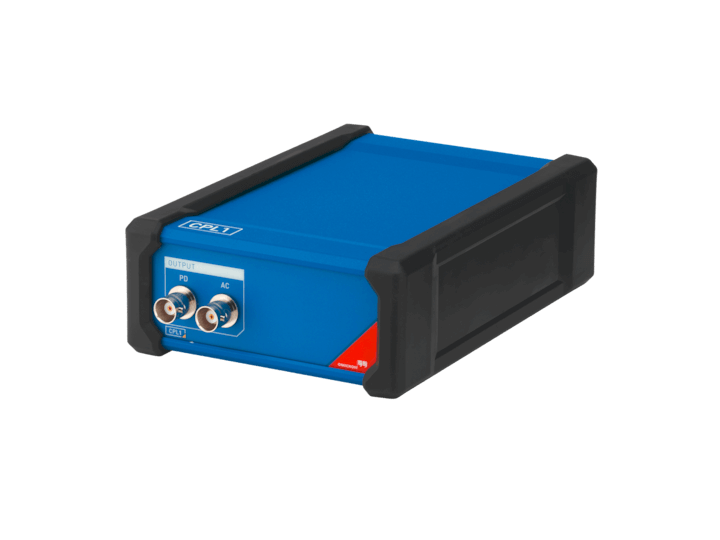

CPL1/CPL2
- The CPL1 and CPL2 external quadripoles are designed to connect the MPD 800 partial discharge measurement device to a capacitance (coupling capacitor or test object), which generates a reactive current larger than the current that can be directly handled by the MPD 800 measurement device.
- In addition, the CPL2 external quadripole allows you to use third-party measuring equipment using the same coupling capacitor or test object as the MPD 800 system.

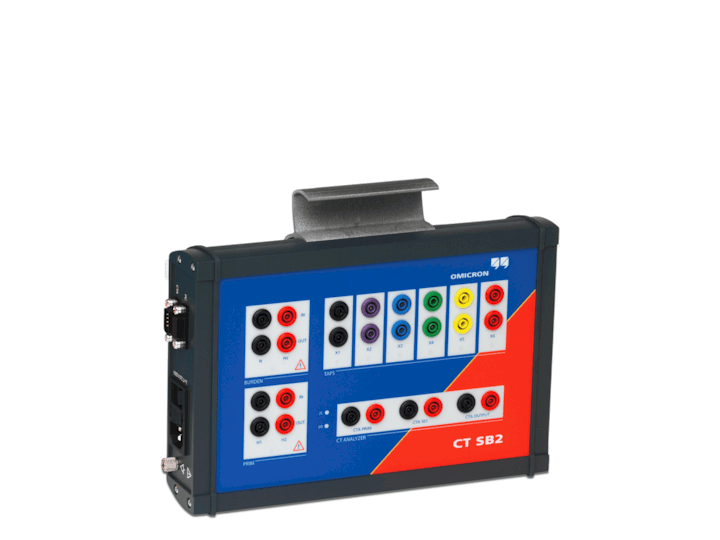

CT SB2
- Up to six connections for the secondary side of the current transformer
- Automatic check to ensure correct wiring
- Separate connections for primary resistance measurement and measurement of the secondary burden
- Fully automated testing with no need for rewiring.

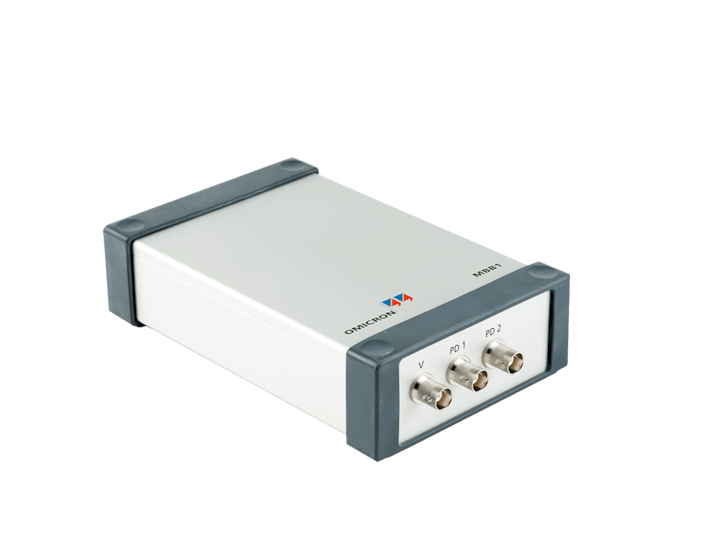

MBB1
- Enhanced noise reduction during PD measurements
- PD measurement performance as specified by IEC 60270
- Automated settings for greater efficiency and optimal test results

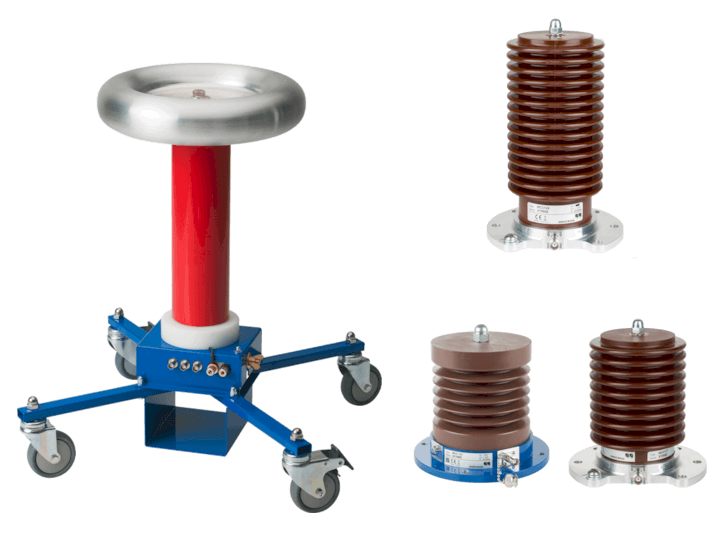

MCC 112/117-C/124-C/210
- Decouple PD measurements and voltage signals from the high-voltage potential
- High coupling capacity of 1nF or higher for excellent sensitivity even in the low frequency range (acc. IEC 60270)
- PD-free up to PD test voltage.

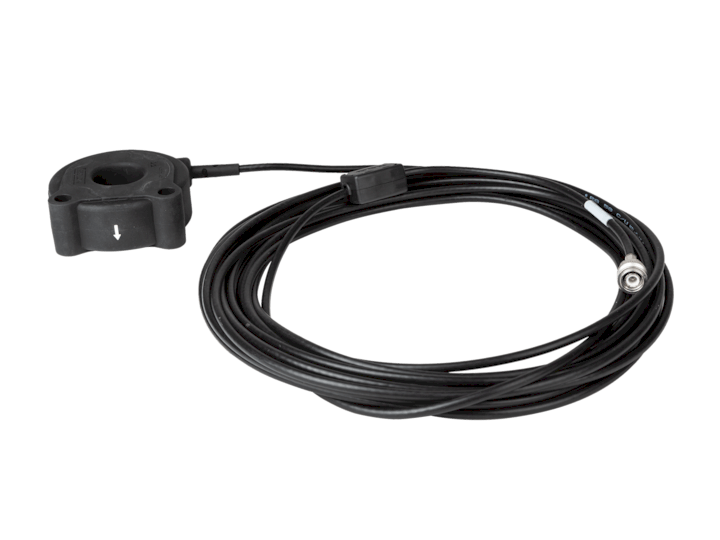

MCT 085
- Designed for offline or online PD measurement on medium-voltage (MV) cables
- Multiple mounting possibilities at the measurement site
- High sensitivity in a wide frequency range for a very good signal-to-noise-ratio
- Intended for use with MPD 800 and MONTESTO 200 systems.
MCT 120
- PD recording at a safe distance from high voltage
- Can be separated for easy installation
- Ample clearance for large cables.

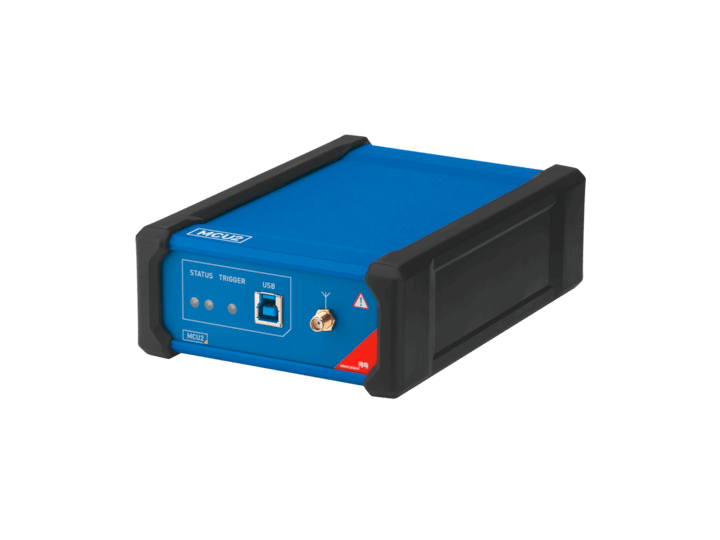

MCU2
- The MCU2 multi-device control unit is designed for connecting one or more MPD 800 partial discharge (PD) measurement devices to a PC.
- It converts optical signals, which are generated by the PD measurement device and transmitted to the MCU2 control unit via fiber optic cables, into the standard USB electrical communication signal.
- The MCU2 control unit is connected to the PC using the supplied USB cable. Two versions of the MCU2 are available – either with a single FO connection or with three fiber optic connections.
- Fiber optic cables are supplied separately by OMICRON.

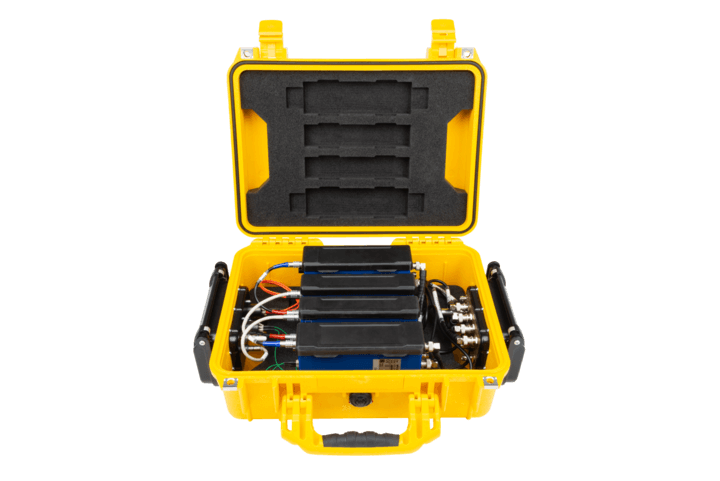

MPC1
- Protects PD measurement equipment from moisture, dust, and other harmful conditions.
- Easily configurable for a variety of PD testing applications.
- Convenient front panel connections to a wide variety of PD sensors.
- Fiber optic connections to the MCU2 for enhanced safety and signal integrity.
- Multiple transport cases can be connected with fiber optic cables in a daisy chain.

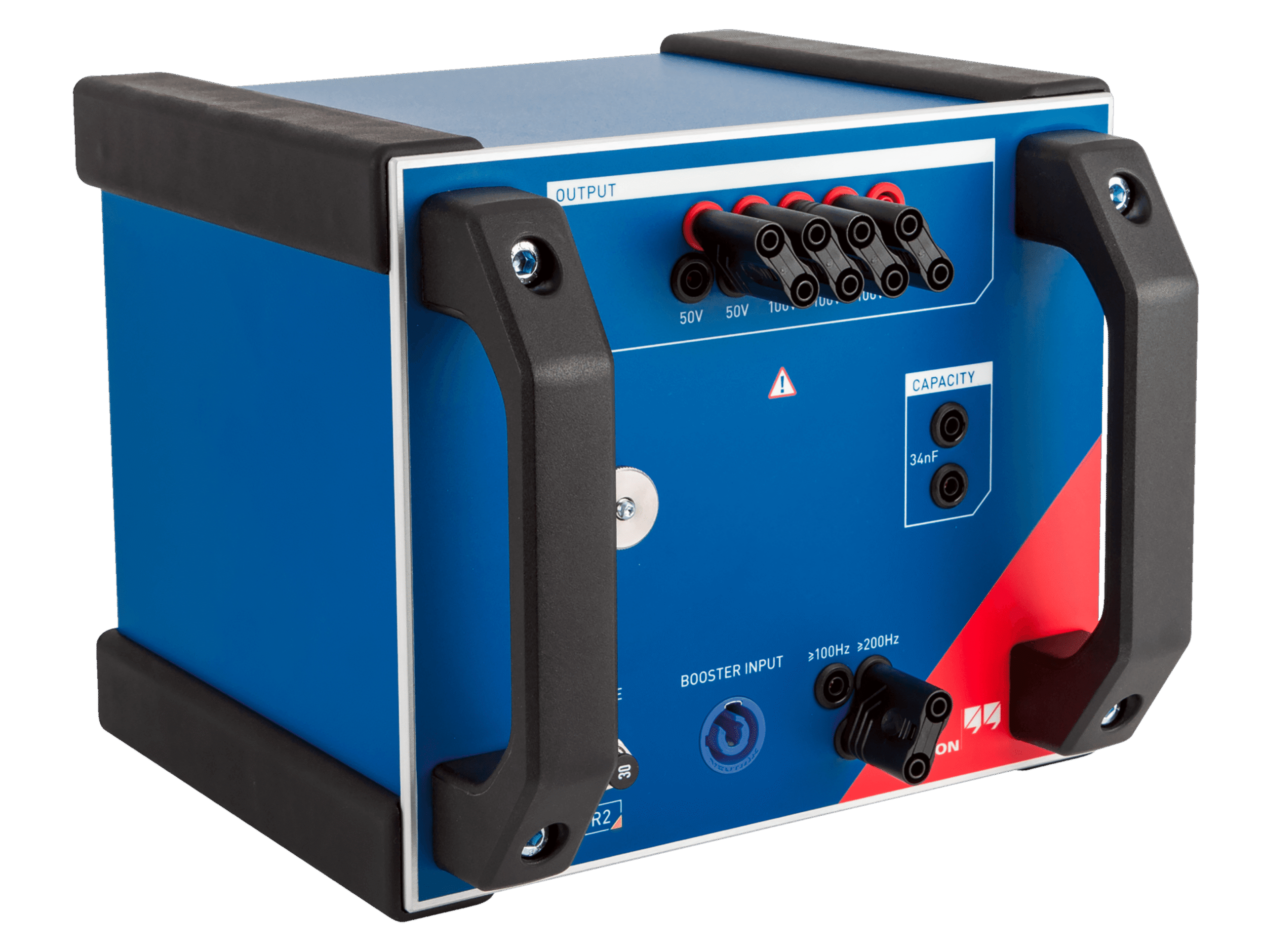

MTR2
- Adjustable output voltage between 100 V / 200 V / 400 V / 800 V at frequencies > 100 Hz
- Partial discharge filter for minimum noise disturbances from the source
- Using CPC Sync, up to three MTR2 can be connected in parallel to increase the output power of the system
- Expandable by an MPD system to perform on-site PD measurements

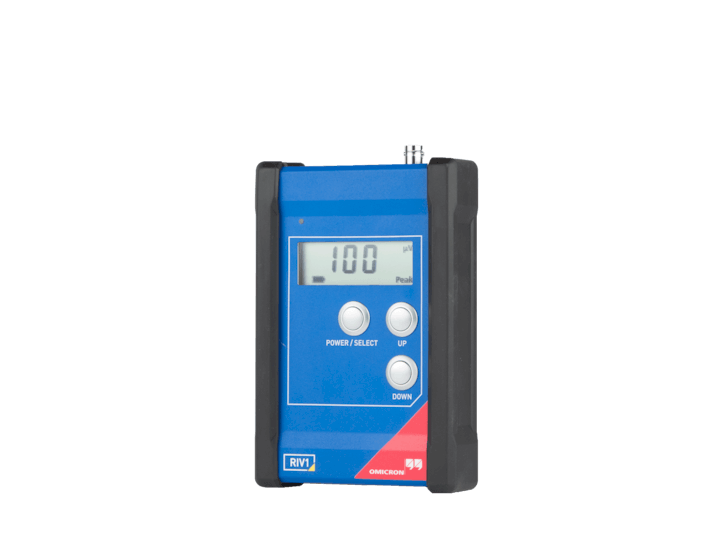

RIV1
- Adjustable signal frequency and output voltage to match application requirements
- Application-specific versions of RIV calibrators and measurement impedances ensure fully compliance to applicable measurement standards
- Complies with all parts of RIV related NEMA, IEEE, IEC and CISPR standards
- Independent power supply with built-in battery.
TEV1
- Non-invasive PD detection
- Decouples transient earth voltages (TEV) on the surface of metal-clad or metal-enclosed switchgear originating from PD activity within the cabinet
- Combining TEV1 with the MPD 800 and its tunable digital filters provides sensitive PD detection and identification to determine corrective action.

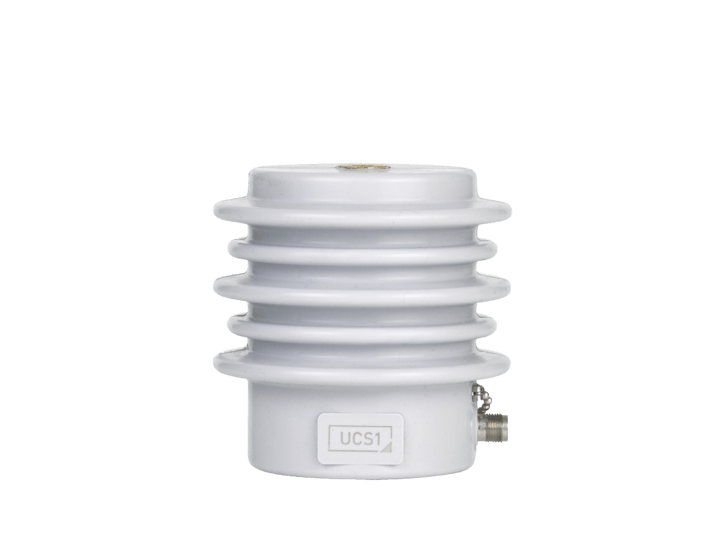

UCS1
- Measures PD in high-frequency UHF range
- Ensures sensitive PD measurements in noisy environments
- Designed specifically for PD detection at HV cable terminations
- Does not require parallel installed grounding connections
- Galvanically isolated signal output prevents induced currents.

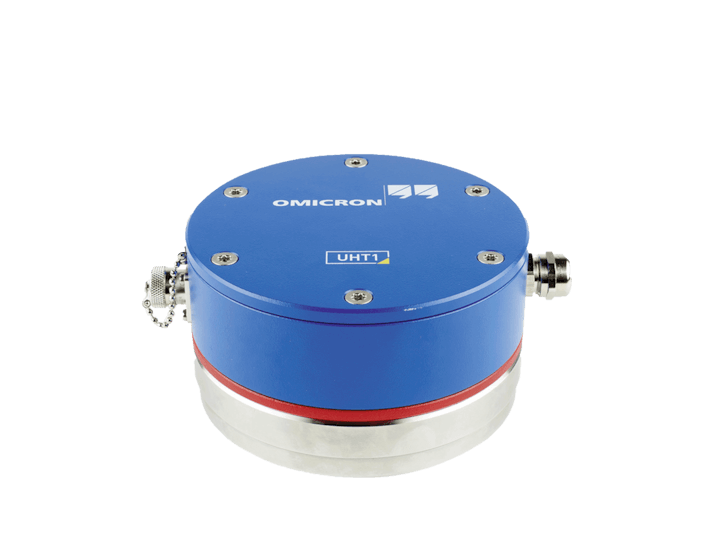

UHT1
- Designed for permanent installation on the surface of power transformers tank
- Creates an oil-tight dielectric window permeable to electromagnetic waves
- Decouples PD signals from inside power transformers in the UHF range
- Enables suppression of external noises, such as corona
- Can also be used as a trigger source for acoustic PD measurements.
