Teledyne Flame and Gas Detection
Teledyne Gas & Flame Detection delivers world-class safety solutions designed to protect people, property, and industrial operations from hazardous gases and fire risks. With decades of expertise and a global footprint, Teledyne offers a comprehensive portfolio of Fixed and Portable Gas detectors, Flame detection systems, and advanced monitoring technologies trusted across oil & gas, petrochemical, manufacturing, utilities, and industrial sectors. Teledyne Gas & Flame detection products combine robust engineering with cutting-edge sensing technology to ensure reliable performance in the most demanding environments, helping organizations achieve higher safety standards and regulatory compliance.
Petrotec is an Authorized Channel Partner for Teledyne Flame and Gas Detection.
Key Benefits
Key Products

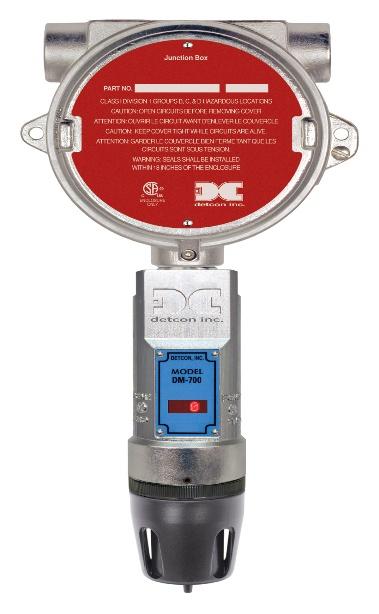

700-series Gas detectors
The 700 Series Gas detectors are designed for use in extreme environmental conditions. These Gas detectors offer rugged 316 SS construction with fully encapsulated electronics for exceptional resistance to water ingress, corrosion, and vibration. They feature smart, plug-in replaceable sensor modules with intuitive non-intrusive calibration, full-text LED displays, and advanced pre-emptive fault diagnostics. Dual outputs (4–20 mA and Modbus RS-485) plus optional integration modules (HART, RAM) ensure flexible connectivity across industrial safety systems.
Gases detected: Combustible, Toxic, O2, CO2, VOC’sÂ
Sensor Technologies: Catalytic, Electrochemical, Infrared, Semi-Conductor (H2S), Photoionization PID (VOCs)

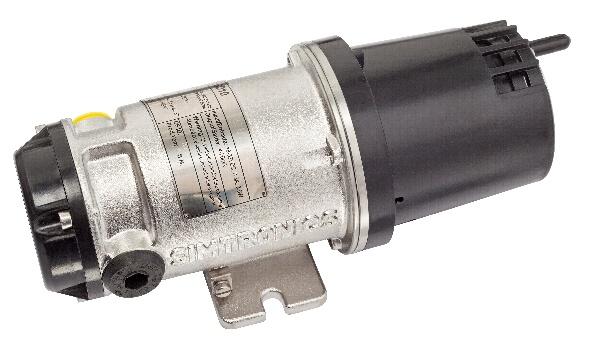

GD10P
The GD10P is the benchmark for infrared detectors. Equipped with two infra-red sources, using multibeam technology, the GDP10 is so reliable that it requires no maintenance throughout its entire useful
life. Ultra-fast response time, stainless steel 316L construction, heated optics, 5-year warranty for the detector and 15-year warranty for the sources, global certification, and HART communication
protocol make the GD10P one of the most widely used detectors in the oil and gas industry.

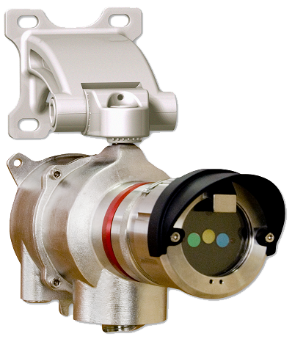

Flame detectors
DF-TV7 Series Flame Detectors deliver fast, reliable Flame detection using advanced multi-spectrum infrared (3IR) and UV/2IR technologies engineered for harsh industrial environments. They feature robust stainless-steel 316L construction, wide-angle optical coverage, and intelligent false-alarm immunity for dependable performance in critical safety applications. Flexible outputs, including 4–20 mA, relays, and HART, ensure seamless integration with plant-wide Fire and Gas monitoring systems

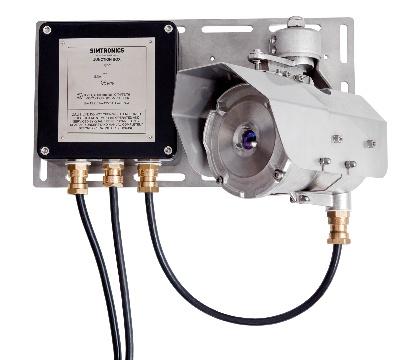

GD1
GD1 Laser Open Path H2S Detector uses a unique tunable Laser diode aligned to a precise H2S absorption line, delivering highly selective, interference-free H2S detection with proven immunity to sunlight, fog, dust, and sandstorms.Â
Its rugged solid-state design ensures reliable operation in extreme Middle East heat, with long maintenance intervals, >10-year sensor life, and SIL2-certified performance. Backed by a 5-year manufacturer warranty and a strong installed base across regional Oil & Gas facilities, GD1 provides dependable H2S monitoring for demanding industrial environments.
Wireless Gas detection systems

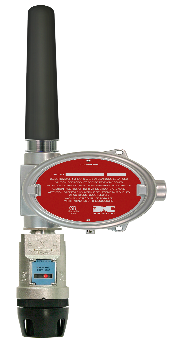

CXT:
CXT Wireless Gas Detectors provide robust, battery-powered gas monitoring with long-range wireless communication designed for remote or hard-to-reach industrial locations. They feature smart plug-in sensor modules, non-intrusive calibration, and advanced fault diagnostics for reliable, low-maintenance operation. An integrated wireless mesh network, flexible outputs, and rugged Class I, Div. 1 construction ensure dependable performance in harsh environments.

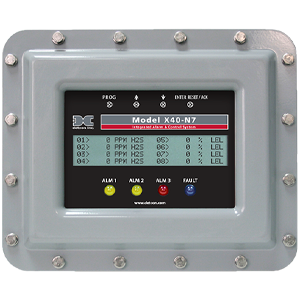

X40 wired/wireless controller
X40 Wired & Wireless Controllers provide flexible, modular gas-detection control for up to 32 channels, supporting both hardwired inputs and fully integrated wireless networks. They feature a bright, intuitive operator interface with real-time status, alarm indication, and straightforward configuration designed for industrial safety systems. Rugged construction in N4X & N7 options, advanced fault diagnostics, and seamless compatibility with Detcon wired and CXT wireless devices ensure reliable performance across diverse plant environments
Methasense
MethaSense Trace is a comprehensive solution designed for continuous methane emission monitoring, detection, and quantification across large-scale industrial sites. Aligned with new Leak Detection and Repair (LDAR) regulations, it offers an innovative solution for low-emission methane monitoring and detection.
By combining real-time sensing, cloud-based analytics, and automated reporting, it enables operators to detect, localize, and measure methane leaks with precision. This not only helps reduce emissions but also ensures full compliance with evolving methane regulations.
Methasense Trace is powered by a replaceable battery with a lifespan of over 10 years, enabling long-term field deployment with minimal maintenance, and supports LoRaWAN, long-range wireless communication and remote monitoring.
